[Day 146] MLOps zoomcamp module 2 homework + some more prep for Microsoft x NVIDIA's hackaton

 Hello :)
Today is Day 146!

A quick summary of today:

• did 2nd homework from MLOps zoomcamp on experiment tracking

• covered some material on devops on Azure

MLOps zoomcamp Module 2 homework on experiment tracking

The homework link is here. The homework followed the below outline:

1. Install mlflow
2. Preprocess NYC taxi data
3. Train a model with autolog
4. Launch a tracking server locally
5. Tune model hyperparams
6. Promote the best model

My code for it is on my github.

The used model was a random forest regressor using rmse as the main evaluation metric. The homework was more focused on running mlflow commands rather than the preprocessing/training (which were done in Module 1 of the course).

Below is a graphical comparison of some of the models I ran

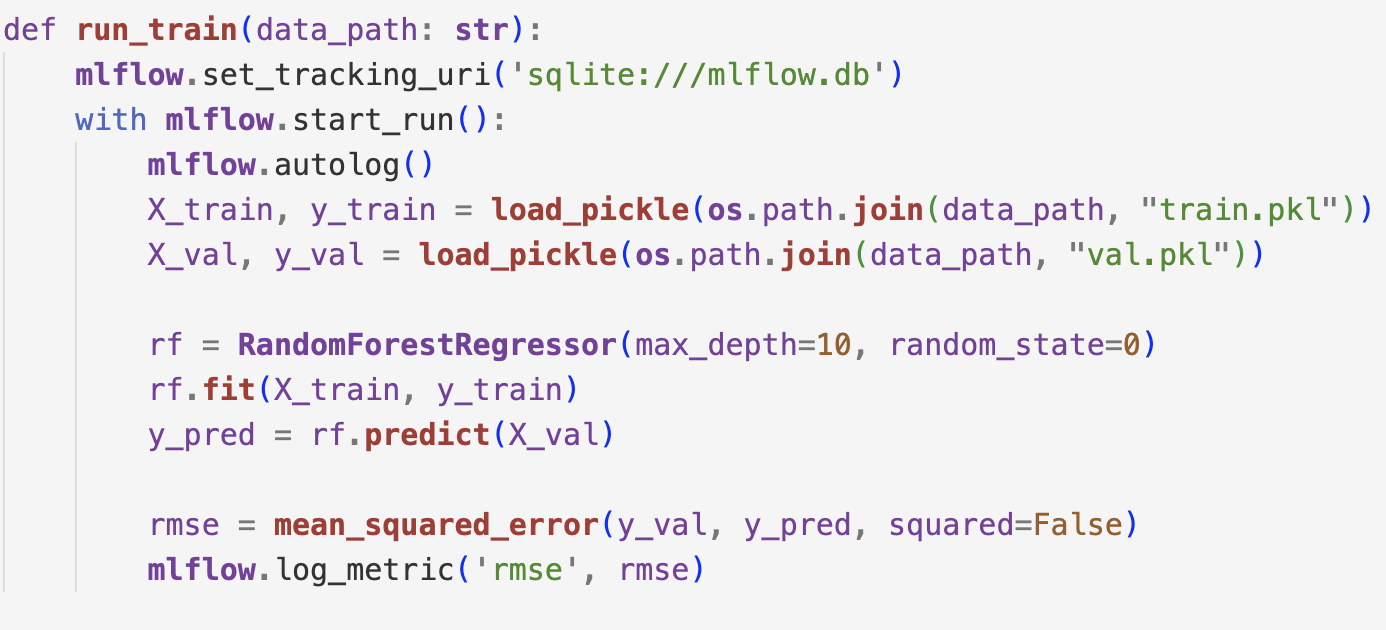

I had to set up logging and mlflow db for a sample run

Run hyperparam optimization

And finally choosing and registering the best model

For a bit I faced an issue with the params passed to the model because they were missing (initially not logged in the hyperparam opt code), and then I kept registering the *worst* performing model because i had [0] at the end of that best run, but when I put [-1] it was all good. Below are the top 5 and then best among the 5 models is registerered.

As for the next module - module 3, I saw we will use Mage to learn Orchestration and ML Pipelines and saw that the youtube videos were uploaded today.

2nd prep course for Microsoft x NVIDIA hackaton in Microsoft's office in Seoul

It was a bit long so I covered just the bits I thought were new, and below are some notes I took along the way.

Azure Boards: tools for agile planning, work item tracking, visualization, and reporting

Azure Pipelines: a CI/CD platform that is language, platform, and cloud-agnostic, supporting containers and Kubernetes

Azure Repos: cloud-hosted private Git repositories with two types of version control: distributed (Git) and centralized (Team Foundation Version Control, TFVC). Features include

• Free private Git repositories
• Support for any Git client
• Web hooks and API integration
• Semantic code search
• Git code reviews with threaded discussion
• Continuous integration for each change
• Branch policies to ensure code quality
• Integration with favorite tools and editors

Azure Artifacts: Integrated package management supporting Maven, npm, Python, and NuGet packages from public or private sources

Azure Test Plans: An integrated solution for planned and exploratory testing

Workflows: Define automation processes, detailing trigger events and jobs to run. Workflows are written in YAML and located within the GitHub repository at .github/workflows. Example:

GitHub runners: compute resources that execute GitHub Actions workflows, performing build, test, and deployment tasks directly within GitHub repositories

Continuous integration with actions example

• On: Specifies what will occur when code is pushed
• Jobs: There's a single job called build
• Strategy: It's being used to specify the Node.js version
• Steps: Are doing a checkout of the code and setting up dotnet
• Run: Is building the code

Next, Azure Pipelines is a robust service for creating cross-platform CI/CD workflows, integrating with your preferred Git provider and deploying to major cloud services. Key features

• End-to-end flow of value: Focus on delivering continuous value from concept to customer, avoiding siloed processes
• Automation and reliability: Establish a repeatable, reliable process for software delivery
• Quality verification: Each pipeline stage verifies feature quality to prevent user-facing errors
• Team feedback and visibility: Ensure all team members have feedback and visibility into the delivery process
• Frequent small changes: Promote frequent, smaller changes for better flow and optimization
• Continuous improvement: Continuously monitor and resolve obstacles to improve pipeline efficiency

Pipeline stages:

• Build automation and Continuous Integration: Automatic building and integrating of changes
• Test automation: Automated testing for functionality and quality
• Deployment automation: Automated deployment to various environments

Orchestration:

• Release and pipeline orchestration: Manage and control the entire pipeline, providing top-level insights
• Value stream mapping: Identify and improve inefficiencies
• Infrastructure efficiency: Efficient infrastructure is crucial for an effective pipeline

Key terms in Azure pipelines

• Agent: software that runs a build or deployment job
• Artifact: collection of files or packages published by a build, used for distribution or deployment
• Build: one execution of a pipeline, collecting logs and test results
• Continuous Delivery (CD): process of building, testing, and deploying code to various stages, ensuring quality through multiple stages and constant monitoring
• Continuous Integration (CI): practice of automating the testing and building of code to catch issues early. CI systems produce artifacts used in CD pipelines for automatic deployments
• Deployment target: destination for application deployment, such as a virtual machine, container, or web app
• Job: a set of steps run on an agent within a build, representing an execution boundary
• Pipeline: script defining the CI/CD process, composed of tasks for testing, building, and deploying
• Release: execution of a release pipeline, including deployments to multiple stage
• Stage: primary divisions in a pipeline, such as 'build,' 'test', and 'deploy'
• Task: building block of a pipeline, performing specific jobs like building, testing, or deploying
• Trigger: configuration that specifies when the pipeline should run, such as on code push or schedule

That is all for today!

See you tomorrow :)
